1. Introduction to the critical role of precision in modern manufacturing and defining the complexities of plastic injection molding for products requiring tight tolerances.
In the fiercely competitive landscape of modern manufacturing, precision is not merely a desirable trait but a fundamental necessity. Industries ranging from medical devices and automotive components to aerospace and consumer electronics are increasingly reliant on parts that adhere to microscopic tolerances. Any deviation, no matter how minute, can compromise product functionality, safety, and ultimately, market viability. This escalating demand for exactitude places immense pressure on manufacturing processes, particularly on advanced techniques like plastic injection molding, which must deliver components with unwavering consistency and dimensional accuracy, especially for products requiring tight tolerances.
The Imperative of Precision in Contemporary Manufacturing
The drive for precision stems from several critical factors. Miniaturization, the integration of complex functionalities, and the necessity for flawless interoperability among components dictate that parts meet stringent specifications. In sectors like medical technology, a precisely molded component can be the difference between life-saving functionality and catastrophic failure. Automotive industries demand components that fit perfectly and perform reliably under extreme conditions, ensuring vehicle safety and longevity. Similarly, in electronics, the shrinking size of devices requires intricate plastic housings and internal structures that must precisely align to protect sensitive circuitry and facilitate assembly. This underscores why precision in manufacturing is paramount – it directly impacts product performance, reliability, safety, and ultimately, the brand’s reputation.
Impact on Product Performance and Reliability
When components are manufactured with high precision, they fit together seamlessly, operate efficiently, and last longer. This reduces assembly time, minimizes waste, and lowers warranty costs. Conversely, imprecise parts lead to costly rework, increased scrap rates, and potential product recalls, eroding customer trust and incurring significant financial losses. Therefore, investing in processes that guarantee precision is not just an expense but a strategic decision that drives efficiency, innovation, and sustained success. The capability to consistently produce components to exacting standards is a hallmark of industry leadership, particularly when it involves advanced plastic injection molding for products requiring tight tolerances.
Unpacking the Intricacies of Plastic Injection Molding
Plastic injection molding is celebrated for its ability to produce complex plastic parts at high volumes with excellent repeatability. However, beneath this seemingly straightforward process lies a multitude of complexities. The transformation of raw plastic pellets into a solid, precisely shaped component involves a delicate interplay of thermodynamics, fluid dynamics, and material science. Factors such as melt temperature, injection speed, holding pressure, and cooling rate must be meticulously controlled to ensure the plastic fills the mold cavity uniformly and solidifies without defects.
Core Challenges in Standard Injection Molding
Even for standard parts, injection molding presents challenges like warpage, sink marks, flash, and voids, all of which can compromise part integrity and appearance. These issues arise from variations in material properties, inconsistent process parameters, and suboptimal mold design. Managing these variables effectively requires extensive expertise and sophisticated equipment. When the stakes are raised to plastic injection molding for products requiring tight tolerances, these inherent complexities are amplified exponentially, demanding an even higher level of control and foresight.
Navigating Tight Tolerances in Plastic Injection Molding
The definition of “tight tolerances” in plastic injection molding typically refers to dimensional variations measured in micrometers or thousandths of an inch. Achieving such exacting standards pushes the boundaries of conventional molding practices and necessitates an acute understanding of every variable involved. The challenges extend beyond merely preventing common defects; they involve predicting and compensating for phenomena inherent to plastics and the molding process itself.
Material Behavior and Shrinkage Control
One of the most significant complexities arises from the inherent behavior of plastics, particularly their propensity to shrink as they cool. This shrinkage is not always uniform; it can be anisotropic, meaning it varies in different directions, influenced by material flow and fiber orientation in reinforced plastics. Accurately predicting and managing shrinkage for plastic injection molding for products requiring tight tolerances is a monumental task, often requiring sophisticated simulation software and extensive empirical data to achieve the desired final dimensions.
Process Parameter Sensitivity
For products with tight tolerances, the injection molding process becomes extraordinarily sensitive to even minor fluctuations in parameters. A slight change in melt temperature, injection pressure, or cooling time can lead to measurable dimensional variations. Maintaining these parameters within an extremely narrow window, across thousands or millions of cycles, demands advanced machinery, real-time monitoring, and highly skilled operators. This level of process control is critical to ensuring every part meets the stringent specifications required.
Mold Design and Tooling Precision
At the heart of precision injection molding is the mold itself. For products requiring tight tolerances, the mold must be designed and manufactured with unparalleled accuracy. Every cavity, core, and moving component within the mold must be machined to extremely tight tolerances, often requiring sophisticated EDM (Electrical Discharge Machining) and high-precision CNC machining. The design must also anticipate and compensate for plastic shrinkage, warp, and other material behaviors. This necessitates meticulous mold flow analysis and iterative design adjustments. Understanding the 5 key technical parameters in mold design is crucial in this regard. A world-class mold is the foundational prerequisite for successful precision plastic injection molding.
In conclusion, while plastic injection molding offers incredible versatility, delivering products with tight tolerances transforms it into a highly complex, specialized discipline. It demands an integrated approach where material science, advanced engineering, meticulous process control, and expert mold design converge. As manufacturing continues to evolve, the capacity for such precision will remain a key differentiator for companies seeking to produce the next generation of high-performance products. Choosing the right partner with proven expertise in precision plastic injection molding for products requiring tight tolerances is therefore paramount.
2. Understanding the key challenges and critical factors impacting the achievement of precision in plastic injection molding for products requiring tight tolerances, from material selection to process parameters.
Achieving precision in plastic injection molding for products requiring tight tolerances presents a formidable challenge. While plastics offer design flexibility and cost-effectiveness, their inherent properties and the complexities of the injection molding process introduce numerous variables impacting dimensional accuracy and repeatability. Achieving sub-millimeter tolerances demands a meticulous understanding and control over an intricate interplay of factors, stretching from the fundamental selection of raw materials to the minute adjustments of processing parameters. Failure to master these elements leads to costly rework, scrap, and product failure, underscoring the critical need for specialized expertise in this field.
Material Selection: The Foundation of Precision
The journey towards achieving tight tolerances begins with the careful selection of the right polymer. Each plastic material possesses unique characteristics that profoundly influence its behavior during molding and the final part’s dimensions. Understanding these properties is paramount.
Polymer Properties and Shrinkage
Plastic shrinkage is arguably the most significant material factor affecting precision. As molten plastic cools and solidifies within the mold, it contracts. The degree of shrinkage varies widely among polymers (e.g., crystalline plastics like HDPE or PP shrink more than amorphous ones like PC or ABS) and is influenced by factors such as molecular orientation, wall thickness, and fiber content. Accurately predicting and compensating for this shrinkage is crucial for calculating plastic shrinkage ratio and achieving desired dimensions. Furthermore, properties like melt flow index, thermal expansion coefficient, and hygroscopy (water absorption) can introduce dimensional instability and warpage, making certain materials inherently more challenging for tight tolerance applications.
Additives and Fillers
Additives and fillers (e.g., glass fibers, mineral fillers) significantly alter a polymer’s mechanical properties, shrinkage rate, and thermal expansion. While fillers often enhance strength and reduce shrinkage, they can also introduce anisotropy, meaning different shrinkage rates in different directions, further complicating the achievement of uniform, precise dimensions. The careful selection and consistent quality of these compounded materials are therefore vital for successful plastic injection molding for products requiring tight tolerances.
Mold Design: The Blueprint for Accuracy
Beyond material, the mold itself is a critical determinant of final part precision. A poorly designed mold can negate even the most advanced material selection and process control efforts. Achieving precision in plastic injection molding for products requiring tight tolerances necessitates a mold engineered with meticulous attention to detail.
Gating and Runner Systems
The design of the gating and runner systems directly impacts how plastic flows into the cavity, affecting fill patterns, pressure distribution, and weld line formation. Improper gating leads to uneven filling, differential shrinkage, and localized stress concentrations, compromising dimensional accuracy. Optimal gate location, size, and type are essential to ensure consistent material flow and packing throughout the cavity.
Cooling System Design
Uniform and efficient cooling is fundamental to minimizing warpage and ensuring consistent dimensions. An inadequately designed cooling system leads to differential cooling rates across the part, causing internal stresses and deformation upon ejection. Precise control over mold temperature, achieved through strategically placed cooling channels, is a core challenge in precision mold design.
Ejection System and Part Design Features
The ejection system must facilitate smooth and uniform part removal without introducing stress or deformation. Ejector pin placement, size, and balanced ejection forces are crucial. Furthermore, internal part features such as ribs, bosses, and wall thickness transitions must be carefully designed to prevent sink marks, voids, and non-uniform cooling, all of which detract from precision.
Process Parameters: The Art of Control
Even with optimal material and mold design, the actual injection molding process itself holds a multitude of variables that demand stringent control to achieve tight tolerances. Each parameter influences how the plastic behaves within the mold, directly impacting the final part’s dimensions and mechanical properties.
Injection Speed and Pressure
These parameters govern the filling of the mold cavity. Too slow an injection speed leads to premature freezing and short shots; too fast causes shear heating, material degradation, and flash. Precise control of injection pressure ensures adequate packing of the cavity, compensating for material shrinkage and achieving desired density. Inadequate or excessive pressure can lead to sink marks, voids, or overpacking, all detrimental to dimensional accuracy.
Melt and Mold Temperature
The melt temperature affects the plastic’s viscosity, flowability, and degradation rate. An optimized melt temperature ensures consistent filling and minimizes internal stresses. The mold temperature is equally critical, influencing cooling rates, surface finish, and part shrinkage. Maintaining a consistent and uniform mold temperature throughout the cycle is essential for repeatable precision in precision plastic injection molding.
Holding Time and Cooling Time
Holding time and pressure are vital for packing out the part and compensating for volumetric shrinkage during solidification. Insufficient holding time can result in sink marks and voids, while excessive time can lead to overpacking and flash. The cooling time, which allows the part to solidify sufficiently before ejection, directly impacts cycle time and part stability. An optimized cooling time is essential to prevent part deformation, such as warpage in plastic injection molding.
Post-Molding Considerations
Even after ejection, plastic parts are not entirely stable. Residual stresses and environmental factors can continue to influence dimensional stability.
Warpage and Residual Stress
Warpage, a common defect in precision plastic injection molding, occurs when internal stresses within the part relax or are unevenly distributed, causing distortion. These stresses can arise from non-uniform cooling, differential shrinkage, or molecular orientation. While processing parameters can mitigate warpage, inherent material properties and complex part geometries often pose persistent challenges, requiring sophisticated analysis and control.
Understanding these multifaceted challenges and critical factors is the bedrock for achieving precision in plastic injection molding for products requiring tight tolerances. It highlights the necessity of an integrated approach where material science, mold engineering, and process expertise converge. For expert guidance on navigating these complexities, consider reaching out to specialists like Mr. Long at 0949 90 77 68, who can provide tailored solutions to meet stringent precision requirements.
3. Best practices and advanced strategies for optimizing mold design, material selection, and process control to ensure success in plastic injection molding for products requiring tight tolerances.
Achieving consistently high precision in plastic injection molding for products requiring tight tolerances is a multifaceted challenge that demands excellence across every stage, from initial design to final production. This section delves into the best practices and advanced strategies concerning mold design, material selection, and process control, all critical pillars for delivering components with minimal deviations and superior performance.
Mold Design as a Foundation for Precision
The mold is the heart of the injection molding process, and its design dictates much of the final part’s precision. For components with tight tolerances, a robust and meticulously engineered mold is non-negotiable. Advanced CAD/CAM software and simulation tools (e.g., mold flow analysis) are indispensable for predicting material behavior, optimizing fill patterns, and identifying potential issues like warpage or sink marks before physical mold fabrication begins.
Optimizing Key Mold Features:
- Gate and Runner System: A balanced runner system ensures uniform melt delivery to all cavities, crucial for consistent part dimensions. Hot runner systems are often preferred for tight tolerance applications as they eliminate sprues and runners, reduce material waste, and offer better control over melt temperature and pressure, minimizing cycle variations.
- Cooling System Design: Efficient and uniform cooling is paramount to dimensional stability. Conformal cooling channels, which closely follow the contours of the part, provide more consistent heat extraction, reducing cooling time and residual stresses that can lead to warpage and dimensional inaccuracies.
- Ventilation: Proper mold venting is essential to prevent gas traps and burn marks, which can affect surface finish and part integrity. Adequate vents allow air and volatile gases to escape, ensuring complete filling and reducing injection pressure requirements.
- Material Shrinkage Compensation: Plastic materials shrink as they cool, and this shrinkage must be accurately predicted and compensated for in the mold design. This often involves iterative design and testing, leveraging historical data and specialized software. Understanding and accurately calculating plastic shrinkage ratio is critical for tight tolerance parts.

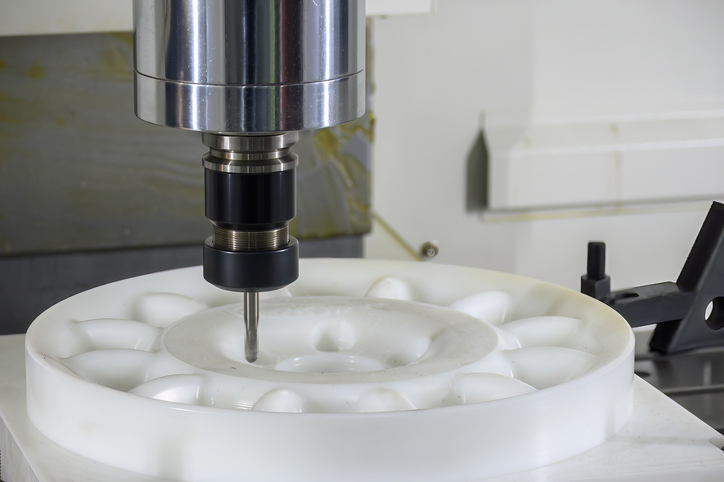

- Tool Steel Selection and Surface Finish: High-quality, hardened tool steels (e.g., P20, H13, S7) offer superior wear resistance and dimensional stability. Achieving a precise surface finish and tight tolerances on mold components themselves through precision machining techniques like EDM (Electrical Discharge Machining), CNC milling, and grinding is vital for replicating those tolerances in the molded parts.
Strategic Material Selection for Demanding Applications
The choice of polymer profoundly impacts the ability to achieve and maintain tight tolerances. Not all plastics are created equal when it comes to precision plastic injection molding for products requiring tight tolerances. Selecting the right material involves a deep understanding of its physical, thermal, and mechanical properties.
Considerations for High-Precision Materials:
- Engineering-Grade Polymers: For applications demanding high precision, engineering plastics like PEEK (Polyether Ether Ketone), LCP (Liquid Crystal Polymer), PPS (Polyphenylene Sulfide), and specific grades of advanced Nylons (PA) are often chosen. These materials typically offer superior dimensional stability, lower and more predictable shrinkage rates, and excellent mechanical properties. For more details on these advanced materials, explore engineering plastics solutions.
- Low and Consistent Shrinkage: Materials with low and consistent shrinkage are preferred. Additives such as glass fibers, carbon fibers, or mineral fillers can further reduce shrinkage and improve dimensional stability, though they can also introduce anisotropy (direction-dependent properties) that must be accounted for in mold design.
- Thermal Stability and Viscosity: Materials with good thermal stability maintain their properties under processing temperatures, while consistent viscosity ensures predictable flow behavior, both crucial for uniform filling and minimal internal stresses.
- Material Handling and Drying: Proper material handling, especially thorough drying for hygroscopic materials, is essential. Any moisture can lead to cosmetic defects, voids, and dimensional inconsistencies, compromising part precision.
Mastering Process Control for Repeatable Accuracy
Even with an optimized mold and the perfect material, success in plastic injection molding for products requiring tight tolerances hinges on meticulous process control. This involves leveraging advanced machinery and adopting scientific molding principles.
Advanced Strategies in Process Control:
- Precision Injection Molding Machines: Modern electric or hybrid injection molding machines offer superior control over injection speed, pressure, and position. Their high repeatability is critical for producing consistent parts, shot after shot.
- Scientific Molding Principles: This data-driven approach focuses on understanding the four primary plastic conditions (melt temperature, mold temperature, injection pressure, and cooling rate) and their impact on the part. Decoupled molding techniques, which separate the filling, packing, and holding phases, provide independent control over each stage, leading to more stable and repeatable processes.
- Parameter Optimization: Fine-tuning process parameters such as melt temperature, mold temperature, injection speed profile, transfer position, holding pressure and time, and cooling time is paramount. Small variations can lead to significant changes in part dimensions and warpage. Regularly checking and calibrating machines is a best practice. Learn more about preventing warpage in plastic injection molding.
- In-Mold Sensors and Feedback Systems: Integrating in-mold pressure and temperature sensors provides real-time data from within the cavity. This feedback allows for dynamic adjustments to the process, compensating for minor material or machine variations and ensuring consistent part quality.
- Environmental Control: Maintaining a stable manufacturing environment (temperature, humidity) minimizes external factors that can influence material properties or mold performance, especially in cleanroom environments for medical or electronic components.
By integrating these best practices and advanced strategies in mold design, material selection, and process control, manufacturers can significantly enhance their capabilities in plastic injection molding for products requiring tight tolerances. This holistic approach ensures that parts meet stringent specifications, minimizing scrap rates and maximizing production efficiency. For specialized consulting or custom mold solutions, please contact Mr. Long at 0949 90 77 68.
4. Implementing robust quality control and metrology techniques to verify and maintain the required specifications in plastic injection molding for products requiring tight tolerances, highlighting the importance of supplier expertise.
Achieving and sustaining precision in plastic injection molding for products requiring tight tolerances is not merely about advanced design and process control; it fundamentally relies on rigorous quality control (QC) and state-of-the-art metrology. These disciplines are the bedrock for verifying that every component meets exacting specifications, ensuring functional integrity and product reliability. In manufacturing environments where deviations of even a few microns can render a part useless, robust QC protocols combined with precise measurement techniques are non-negotiable. Furthermore, the selection of an experienced supplier is paramount, as their expertise directly impacts the efficacy of these crucial validation processes.
Foundational Quality Control Strategies for Precision Plastic Injection Molding
Effective quality control for plastic injection molding for products requiring tight tolerances must encompass the entire production lifecycle, from raw material inspection to final product validation. It’s a proactive approach designed to prevent defects rather than simply detect them. This involves establishing clear quality parameters, implementing statistical process control (SPC), and continuous monitoring at various stages.
In-Process Monitoring and Control
Real-time monitoring during the injection molding process is critical for maintaining consistency. This includes tracking key parameters such as melt temperature, injection pressure, holding pressure, cycle time, and cooling time. Sensors integrated into the molding machine and mold provide continuous data feedback, allowing for immediate adjustments to prevent deviations. Statistical Process Control (SPC) charts are invaluable tools here, enabling operators to identify trends and potential issues before they lead to out-of-spec parts. For parts with tight tolerances, even minor fluctuations can be detrimental, making proactive in-process control indispensable.
Post-Production Inspection and Batch Sampling
Once parts are molded, a comprehensive post-production inspection regime is essential. This often involves both destructive and non-destructive testing. Destructive tests might include tensile strength, impact resistance, and density checks, especially for critical mechanical components. Non-destructive tests, such as visual inspection for cosmetic flaws, dimensional checks, and functional testing, verify that the finished parts conform to all specifications. Batch sampling plans, often based on AQL (Acceptable Quality Limit) standards, ensure that a representative sample of parts is inspected from each production run, providing confidence in the overall batch quality. This rigorous approach is fundamental when manufacturing plastic injection molding for products requiring tight tolerances.
Advanced Metrology Techniques for Verifying Tight Tolerances
Metrology, the science of measurement, moves beyond basic calipers and micrometers when dealing with the intricate demands of plastic injection molding for products requiring tight tolerances. Modern manufacturing necessitates advanced tools that offer higher precision, faster measurement times, and the ability to capture complex geometries. These techniques are crucial for validating the dimensional accuracy, geometric tolerances, and surface finish of intricate plastic parts.
Coordinate Measuring Machines (CMMs)
CMMs are workhorses in precision metrology, providing highly accurate three-dimensional measurements. Using a probe (contact or non-contact) that touches or scans points on a part’s surface, a CMM can precisely map its geometry and compare it against the CAD model. This is particularly effective for complex internal features and contours where traditional tools fall short. Modern CMMs can be automated, enhancing throughput and consistency, which is vital for high-volume production of components demanding extremely tight tolerances.
Optical and Laser Scanning Systems
For sensitive parts or those with highly complex, free-form surfaces, optical and laser scanning systems offer non-contact measurement solutions. These systems project light patterns or laser lines onto the part and capture the reflected data with cameras. This generates a dense point cloud or mesh model of the part, which can then be precisely analyzed for deviations from the nominal design. They are ideal for rapid inspection, especially for delicate plastic parts that could be deformed by contact probes, and ensure the stringent specifications are met in plastic injection molding for products requiring tight tolerances.
The Indispensable Role of Supplier Expertise in Achieving Precision
Even with the best equipment, the success of robust quality control and metrology ultimately hinges on the expertise of the chosen supplier. A highly experienced plastic injection molding partner brings invaluable knowledge in:
- Process Optimization: Understanding how material properties, mold design, and machine parameters interact to influence part dimensions and quality. They know how to “dial in” the process for consistent results, minimizing shrinkage and warp.
- Metrology Interpretation: The ability to not just take measurements, but to interpret the data, understand the root causes of any deviations, and implement corrective actions swiftly.
- Tooling Maintenance: Maintaining the mold itself to prevent wear and tear that can lead to dimensional inaccuracies over time.
- Certifications and Compliance: Adherence to industry standards (e.g., ISO 9001, IATF 16949) demonstrating a commitment to quality management systems.
- Problem-Solving: The capacity to troubleshoot complex issues that arise during production, a skill that comes from years of hands-on experience in manufacturing plastic injection molding for products requiring tight tolerances.
When selecting a partner, look for a track record of success with similar high-precision projects, a dedicated quality assurance team, and an open approach to communication and collaboration. For instance, Mr.Long at 0949 90 77 68 represents a level of dedication to precision that is vital for projects where tolerances are critical.
In conclusion, the successful production of plastic injection molding for products requiring tight tolerances is a symphony of advanced design, meticulous process control, sophisticated quality assurance, and cutting-edge metrology. These elements, when orchestrated by a truly expert supplier, ensure that every component not only meets but consistently maintains the most rigorous specifications. Investing in a partner with proven capabilities in these areas is an investment in product reliability, performance, and ultimate market success.
